hw UV-Watersterilizer

The effective protection against germ contamination, bacterial water clouding and floating algae in marine and freshwater aquariums. Aquarists know the problems: Despite careful care, their fish swim “cloudy water” or the long-awaited, successful propagation of their fish fails due to the fungal growth on the fish eggs…
The reason for this is usually a contamination of the aquarium water through fungal spores, bacterial microorganisms, water cloud or floating algae.
With the use of an hw Watersterilizer their spread will be prevented safely and without any harmful side effects

In the mini-ecosystem aquarium, the bacterial load is many times higher due to the very limited water volume in comparations to nature environments. Without the use of an hw-UV-Watersterilizer the load of unwanted microorganisms will steadily increase, leaving totally the natural balance.
With the installation of an hw-UV-Watersterilizer you can ensure a microbiological balance in your aquarium system and create near as possible natural conditions.

How an hw® UV-Watersterilizer works

In a closed radiation chamber, the aquarium water is directed past an artificial, high-intensity UV-C radiation source. The bacterial microorganisms, cloudy water and floating algae in the water are so intensively irradiated with UV-C radiation that they are killed directly or are no longer capable of cell division and die.

With the hw-UV-Watersterilizer, only the aquarium water flowing through the special glass jacket is exposed to the germicidal effect of UV-C light.

hw-UV-Watersterilizer are a special construction that has proven itself more than 100,000 times in research institutions, in the commercial sector and in ambitious hobby aquaristics.

Due to the extremely large contact surface to the direct UV-C radiation source in connection with a small layer thickness (3 to 4 mm) of the water to be irradiated, such an intensive irradiation is achieved as would otherwise only be achieved by devices with wattages almost twice as high ,

The special glass jacket used acts as a UV-C radiation reflector, which reflects the UV-C radiation back into the radiation room. In this way, the intensity of the radiation is significantly increased again and an increased power yield is realized. At the same time, the special glass jacket enables a precise function check of the UV-C burner as well as a status check of the radiation room.

The visible light penetrating outwards is completely filtered and completely harmless (corresponding to the light emission of a normal neon fluorescent tube …).

When UV-C radiation takes place, sterilized water from the hw®-UV-Watersterilizer constantly mixes with germ-rich water from the aquarium (nitrification bacteria in the filter and in the bottom of the aquarium are not damaged by UV-C radiation). So it is not a complete “disinfection” of the entire aquarium water, but a strong germ reduction (maximum germ reduction in the entire aquarium system approx. 98%) of the aquarium water.

This is extremely important and necessary, because the germs remaining in the water (approx. 2 to 3%) maintain the antibody production of the fish against pathogens and strengthen their immune system.

In the mini-ecosystem aquarium, due to the limited water volume without hw-UV-Watersterilizer, the bacterial load is many times higher than in nature and causes an extremely heavy load on the aquarium system. hw® UV water clarifiers restores the natural balance and create near-natural conditions in the aquarium.

uv_skizze

hw Wiegandt, hw UV-Wasserklärer 10-30W

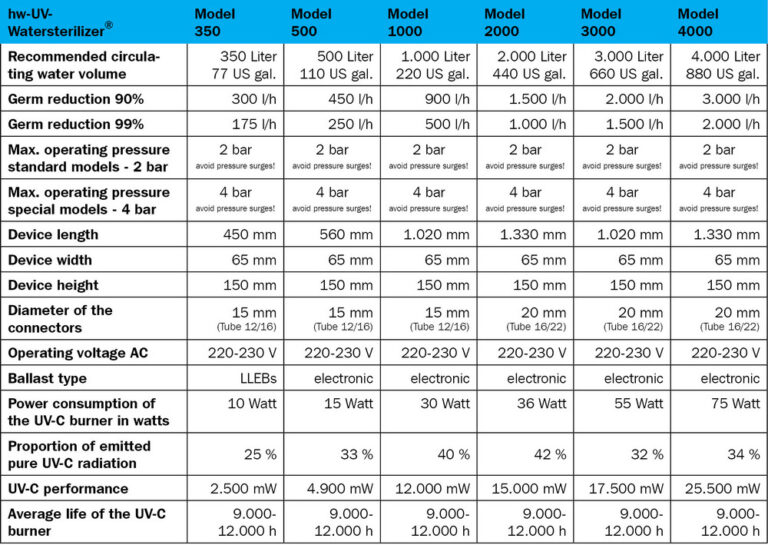

The technical specifications of the hw® UV-Watersterilizer



hw Wiegandt, hw UV-Wasserklärer 350 mit 10 Watt

hw® UV-Watersterilizer Model 350

for Aquariums up to approx. 350 Liter / 78 US gals, with 10 Watt UV-burner.

hw Wiegandt, hw UV-Wasserklärer Modell 500 / 15 Watt

hw® UV-Watersterilizer Model 500

for Aquariums up to approx. 500 Liter / 110 US gals, with 15 Watt UV-burner.

hw Wiegandt, hw UV-Wasserklärer 1000 / hw UV-Wasserklärer 2000 /hw UV-Wasserklärer 4000

hw® UV-Watersterilizer Model 1000

for Aquariums up to approx. 1000 Liter / 220 US gals, with 30 Watt UV-burner.

hw Wiegandt, hw UV-Wasserklärer 1000 / hw UV-Wasserklärer 2000 /hw UV-Wasserklärer 4000

hw® UV-Watersterilizer Model 2000

for Aquariums up to approx. 2000 Liter / 440 US gals, with 30 Watt UV-burner.

hw Wiegandt, hw UV-Wasserklärer 1000 / hw UV-Wasserklärer 2000 /hw UV-Wasserklärer 4000

hw® UV-Watersterilizer Model 3000

for Aquariums up to approx. 3000 Liter / 660 US gals, with 55 Watt UV-burner.

hw Wiegandt, hw UV-Wasserklärer 1000 / hw UV-Wasserklärer 2000 /hw UV-Wasserklärer 4000

hw® UV-Watersterilizer Model 4000

for Aquariums up to approx. 4000 Liter / 880 US gals, with 75 Watt UV-burner.

All hw® UV-Watersterilizer Models

Are you looking for more information on the subject of hw® UV-Watersterilizers? You can find all information in our product catalog
